Chat starter kit

The Chat Starter Kit shows how to integrate tldraw's infinite canvas into an existing chat application. Built on Vercel's useChat hook, this template shows you how to add visual annotation capabilities to any app (in this case, a chat).

Try it yourself

To build with a Chat Starter Kit, run this command in your terminal:

npm create tldraw@latest -- --template chat

Once you've followed the instructions, you'll need to create a .env file with an API key from Google AI Studio:

GOOGLE_GENERATIVE_AI_API_KEY=<your key>

Use Cases

This starter kit shows how to add visual capabilities to:

AI chat apps: Add visual context to conversational AI by letting users sketch diagrams, annotate screenshots, and draw concepts to supplement text conversations.
Design feedback apps: Add annotation to your design review tools so teams can mark up mockups, wireframes, and prototypes within chat conversations.
Educational platforms: Add drawing capabilities to tutoring interfaces so students can sketch math problems, create diagrams, and get visual help.
Documentation systems: Add visual markup to help desk or support chat so users can annotate screenshots and create flowcharts.
Content creation tools: Add sketching and annotation to creative collaboration platforms so teams can mark up references and brainstorm visually.

How it works

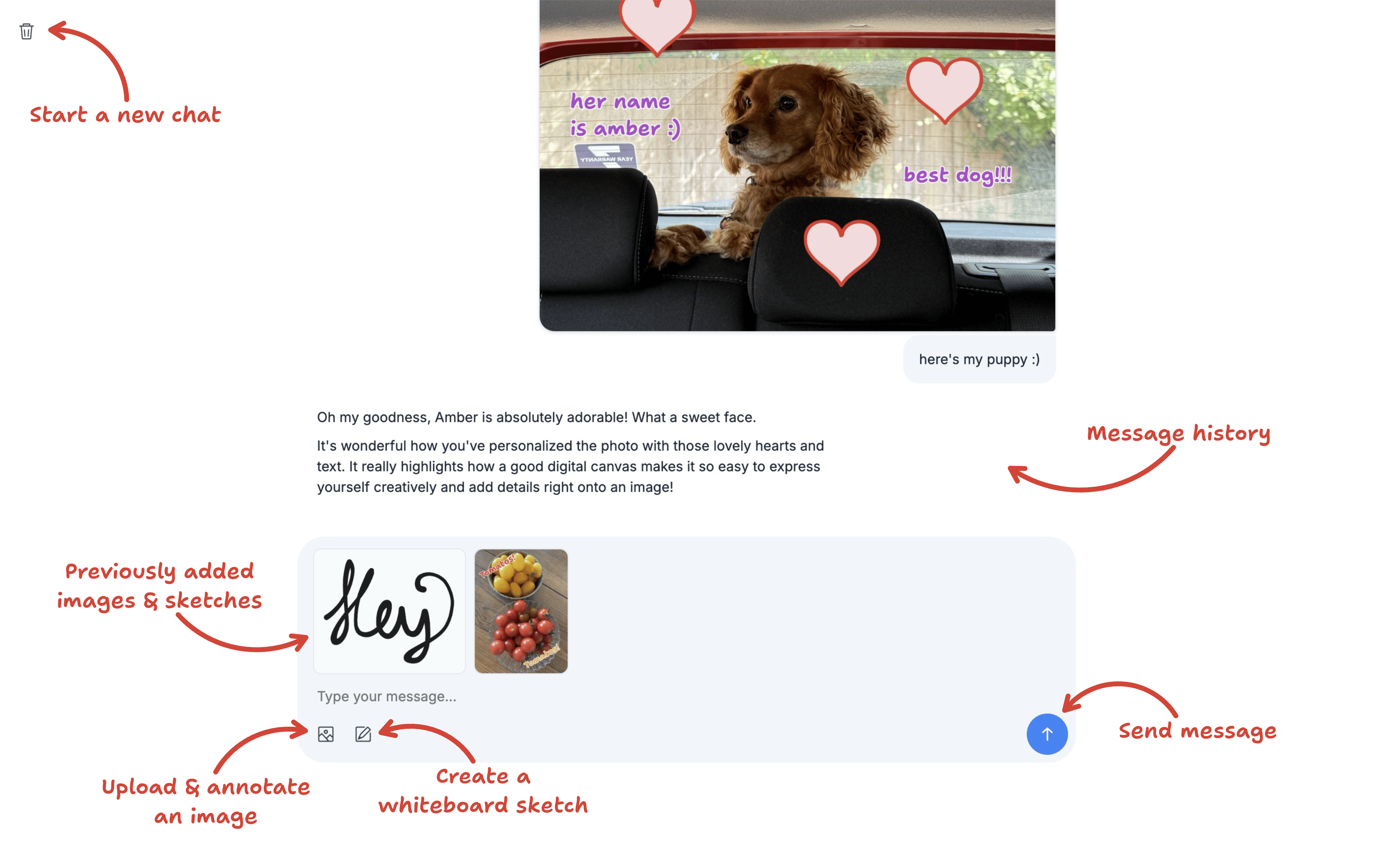

This starter kit demonstrates how to add tldraw's visual capabilities to an existing chat application. The integration uses a modal to bring annotation tools directly into your chat UI.

The whiteboard opens a modal tldraw editor whenever users want to create or edit visual content. The modal supports uploaded images, freehand drawing, and editing images from chat history.

2. Automatic image annotation

When an image is uploaded for the first time, it is placed on the canvas, the camera is centered on it, and the editor switches into cropping mode using editor.setCurrentTool('select.crop'). From there, users can quickly crop their image to the desired section or add annotations on top.

3. Snapshot saving

Once the user has finished sketching or annotating, the editor exports the work as a PNG ready to send to the LLM. At the same time, it saves a tldraw snapshot of the session. This allows users to reopen the image as a whiteboard and continue working from where they left off, without flattening the individual shapes into pixels.

Customization

This starter kit provides a minimal integration between tldraw and a chat app. You can tailor the modal's appearance, available tools, and overall behavior to fit your design system.

Modifying the upload workflow

You can customize the automatic crop behavior, add image processing steps, or extend support for additional file types to match your app's needs.

See src/components/WhiteboardModal.tsx:196 for the automatic crop activation and src/components/Chat.tsx:148 for drag-and-drop handling.

Adapting to your design system

Since tldraw is built with React, you can adapt both the modal behavior and its appearance for seamless integration with your chat interface. This includes controlling when the modal opens, how it looks, and which tools are available.

For example, see src/components/WhiteboardModal.tsx:93 for UI component overrides, src/components/Chat.tsx:114 for modal trigger logic, and src/app/styles.css for styling to match your design system.
